High-Efficiency Fireplace Insert and Liner System in Paramus, NJ
Project Objective: To convert an inefficient masonry fireplace into a high-performance heating source while bringing the chimney system up to current NJ Uniform Construction Code (NJ UCC) standards.
1. Comprehensive Safety Inspection
We began with a Level II Internal Evaluation of the existing chimney. In many Paramus homes, older clay tile liners can develop cracks or "spalling" that allow heat and dangerous gases to bypass the flue. Our inspection confirmed the structural requirements for the new insert and satisfied the mandatory NJ UCC F370 Chimney Verification required by the Borough of Paramus.
2. Precision Lining & Venting
To ensure the new insert breathes perfectly, we installed a UL-Listed High-Grade Stainless Steel Flue Liner.
The Process: We pulled the flexible liner through the entire length of the chimney, creating a dedicated, airtight path from the insert to the top of the stack.
Why it Matters: This prevents the buildup of dangerous creosote in the oversized original masonry cavity and ensures the fire burns hotter and cleaner.
3. Fireplace Insert Installation & Sealing
We professionally set the [Brand/Model] insert into the firebox, ensuring it was level and securely anchored.
Heat Retention: We installed a custom-fabricated Block-Off Plate at the damper area. This is a critical step often skipped by DIYers; it seals the chimney throat to keep the heat inside the home rather than letting it escape into the old chimney "dead air" space.
Finishing: The surround panels were fitted snugly against the hearth to provide a clean, "factory-finished" aesthetic that complements the room.
4. Code Compliance & Final Safety Check
Because we are working in Paramus, we adhered to strict fire safety protocols:
Clearance Verification: We verified that all combustible materials (mantels and trim) met the required safety offsets from the new heat source.
Combustion Test: We performed a smoke-draw test to confirm the vacuum pressure (draft) was optimal, ensuring no smoke or carbon monoxide leaks into the living space.
Permit Coordination: We finalized all technical documentation for the Paramus Building Department, ensuring the homeowner has a "closed out" permit for insurance and future home sale purposes.
5. Results
The homeowner has upgraded from a decorative "open hole" fireplace (which actually sucks heat out of the house) to a 75% + efficiency heating appliance. The system is now fully modernized, safer than the original construction, and ready for the coldest New Jersey winters.
- Fireplace Insert and Liner System
- Chimney Relining
- Chimney Inspections
- Chimney Services

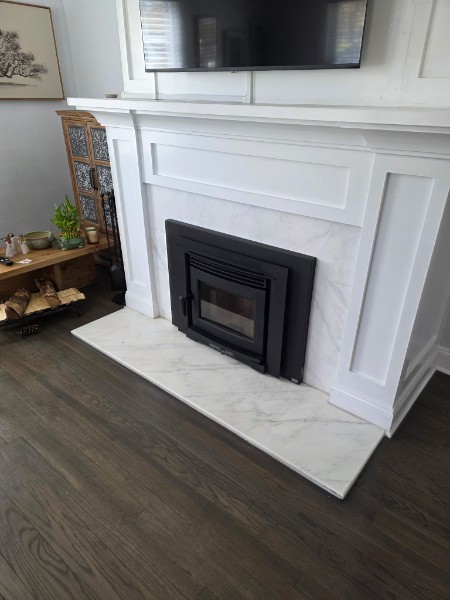

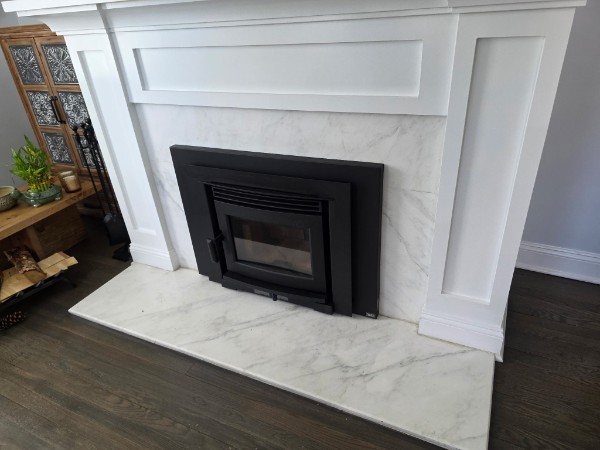

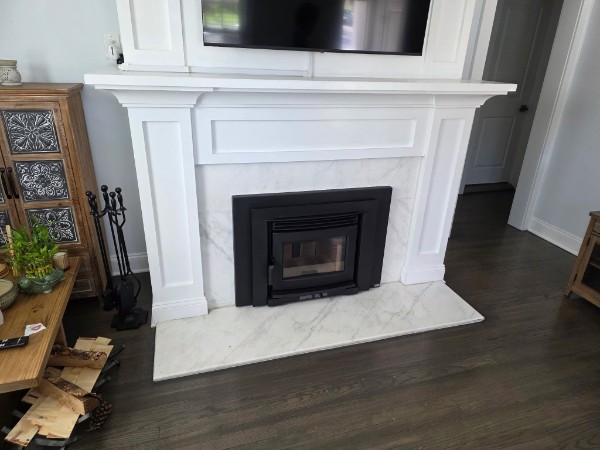

Paramus Fireplace Insert and Liner System Project Image Gallery
