Tailored Chimney Liner Replacement on 100 Year Old Home in Ramsey, NJ
This write-up is specifically tailored for a Ramsey, NJ client, emphasizing the unique challenges of restoring a century-old chimney to modern safety standards while respecting the home's historic integrity.
Project Completion: Historic Chimney Restoration & Modern Liner Integration
Location: Ramsey, New Jersey
Property Type: 100-Year-Old Residential Estate
Project Objective: To modernize a century-old venting system, ensuring complete fire safety and code compliance without compromising the home’s historic masonry.
1. The Challenge: A "Relic" Flue
Ramsey is home to many beautiful properties built in the early 1900s. In this specific home, the chimney was originally "unlined"—a common practice a century ago where smoke traveled directly against the structural brick and mortar.
The Risk: Over 100 years, acidic flue gases had begun to eat away at the mortar joints from the inside out, creating "pinhole" leaks that could allow carbon monoxide or heat to reach the home's original timber framing.
2. Preparing the "Path" (De-Sooting)
Before the new liner could be installed, we performed a heavy-duty mechanical cleaning.
The Process: We removed decades of "glaze creosote"—a hardened, tar-like substance that often builds up in older, oversized chimneys.
The Goal: Clearing this debris was essential to ensure the new stainless steel liner had enough physical clearance to "breathe" and expand/contract with heat.
3. Installing the UL-Listed Stainless Steel System
Because historic chimneys often have "offsets" (bends or curves in the brickwork to navigate around windows or attic eaves), a rigid tile liner was not an option.
The Solution: We installed a High-Flex, 316-Grade Stainless Steel Liner. This material is engineered to navigate the unique "snakes" of an old chimney while providing a smooth, continuous path for exhaust.
Insulation Wrap: In compliance with modern safety standards for 100-year-old structures, we used a UL-Listed foil-backed ceramic insulation blanket around the liner. This "zero-clearance" insulation ensures that even if the outer brick is touching old wood framing, the heat will stay contained within the pipe.
4. Meeting the "Ramsey Requirement" (Code Compliance)
Ramsey building inspectors are diligent about safety in historic zones.
Chimney Verification (Form F370): We completed the mandatory NJ UCC verification, certifying that the chimney was structurally sound enough to support the new system.
Point of Connection: We professionally sealed the "thimble" (where the furnace or fireplace connects to the chimney), ensuring a 100% airtight transition that eliminates the risk of back-drafting.
5. The Result: A Century of Safety
The home’s original exterior aesthetic remains untouched, but the internal "engine" of the chimney is now state-of-the-art. The homeowner can now use their heating system with the peace of mind that their 100-year-old investment is protected by a lifetime-warrantied venting solution.
- Chimney Liner Replacement
- Chimney Relining
- Chimney Liner
- Chimney Services
Location: Ramsey, NJ

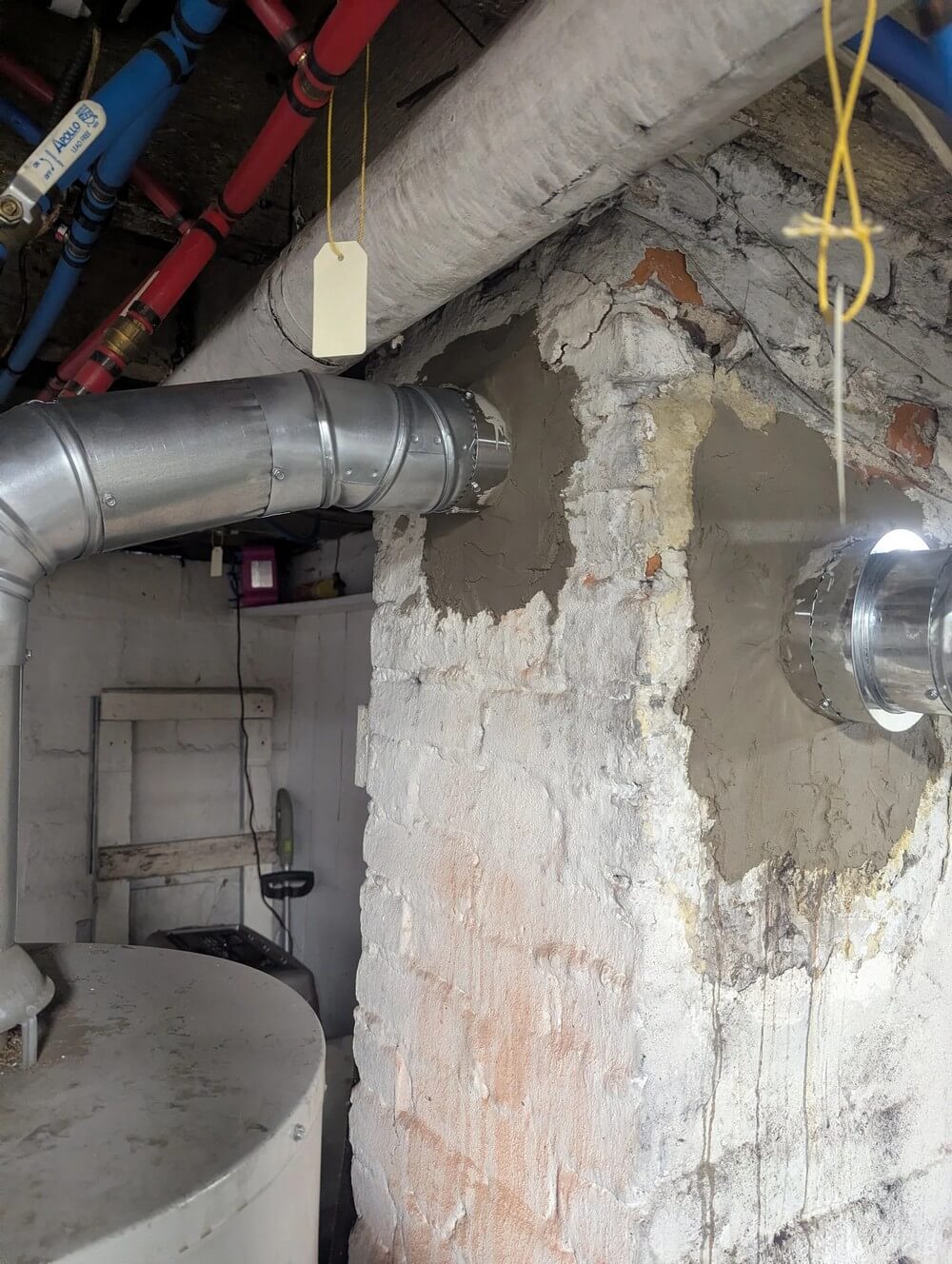

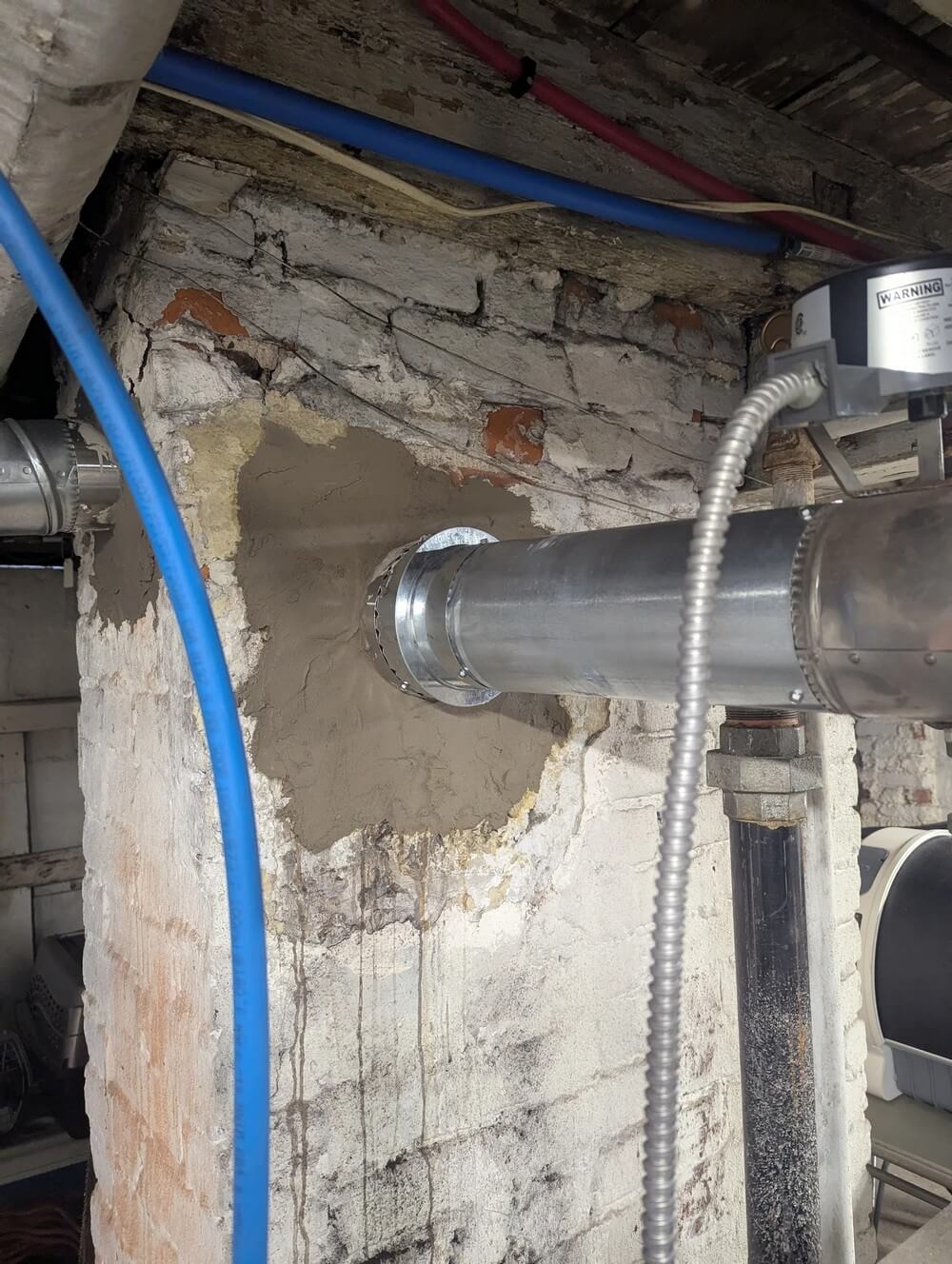

Ramsey Chimney Liner Replacement Project Image Gallery
